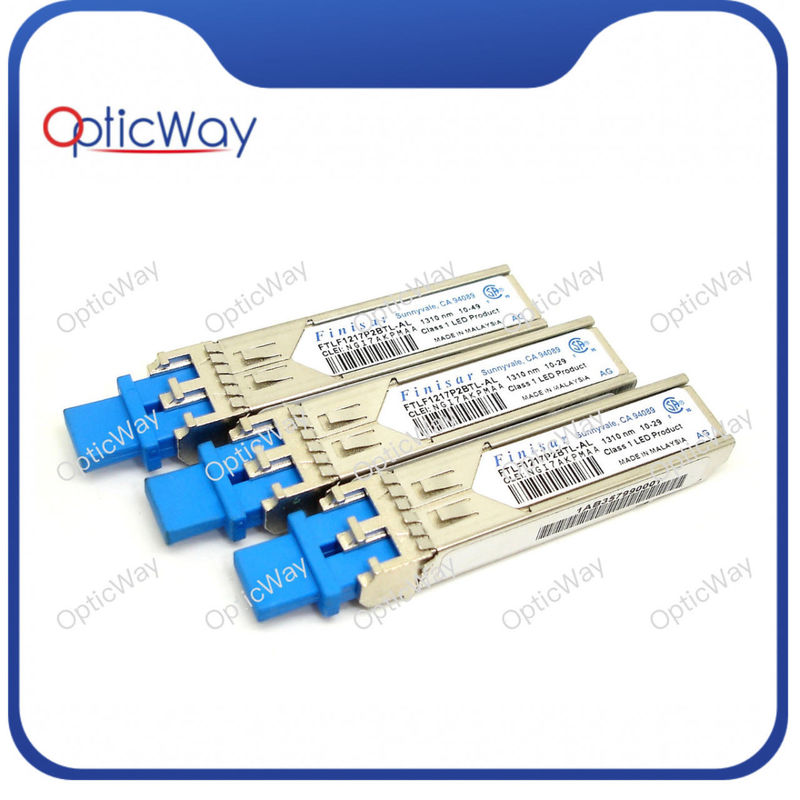

Finisar MMF SFP Transceiver Module FTLF1217P2BTL 200m 2km 1310nm
Product Details:
| Place of Origin: | Malaysia |
| Brand Name: | Finisar |
| Model Number: | FTL1217P2BTL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Delivery Time: | 5-8天 |
| Payment Terms: | TT, PayPal |
|
Detail Information |
|||
| Product Name: | SFP Fiber Transceiver | Data Rate: | 200m |
|---|---|---|---|
| Wavelength: | 1310nm | Reach: | 2km |
| Connector Type: | LC | Fiber Type: | Multi-Mode |
| Operating Voltage: | 3.3V | Temperature Range: | -40° -85°C |
| Highlight: | MMF SFP Transceiver Module,1310nm multi mode sfp module,1310nm SFP Transceiver Module |
||
Product Description
Product Description:Finisar FTLF1217P2BTL 200m 2km 1310nm MMF SFP Fiber Transeciver
FTLF1217P2BTL Small Form Factor Pluggable (SFP) transceivers are compatible with the SFP Multi-Sourcing Agreement (MSA). They are simultaneously compatible with 100Base-FX, FDDI, ESCON, and Multimode SONET OC-3 SR-0 and OC-1 SR-0 standards as specified in IEEE Std 802.3, ISO/IEC 9314-3, Enterprise Systems Architecture/390, and ANSI T1.416.01-1999, respectively. The optical transceiver is RoHS compliant as described in Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.
Features:
- Up to 200 Mb/s bi-directional data links
- Hot-pluggable SFP footprint
- Built-in digital diagnostic functions
- 1310nm LED-based transmitter
- Duplex LC connector
- RoHS compliant
- Up to 2km on 62.5/125μm MMF
- Metal enclosure, for lower EMI
- Single 3.3V power supply
- Low power dissipation
- Industrial operating temperature range: -40°C to 85°C
- Applications
- 125 Mb/s 100Base-FX Ethernet/FDDI
- 200 Mb/s ESCON
- 155 Mb/s Multimode SONET OC-3 SR-0
- 51 Mb/s Multimode SONET OC-1 SR-0
Specifications:
- Distance: 2km
- Data Rate (max): 200 Mb/s
- Protocol: Optical Fast Ethernet Compliant SONET OC-3 Compatible
- Low End Case Temperature (°C): -40
- High End Case Temperature (°C): 85
- Diagnostics: Digital
- Transmitter: LED
- Receiver: PIN
- Voltage Supply: 3.3
- Connector: LC
- Wavelength: 1310nm
FAQ:
- Q: What is the brand name of the SFP Fiber Transceiver?
- A: The brand name of the SFP Fiber Transceiver is Finisar.
- Q: What is the model number of the SFP Fiber Transceiver?
- A: The model number of the SFP Fiber Transceiver is FTL1217P2BTL.
- Q: Where is the SFP Fiber Transceiver manufactured?
- A: The SFP Fiber Transceiver is manufactured in Malaysia.
- Q: What is the transmission range of the SFP Fiber Transceiver?
- A: The transmission range of the SFP Fiber Transceiver is up to 2 km.
- Q: What is the data rate of the SFP Fiber Transceiver?
- A: The data rate of the SFP Fiber Transceiver is up to 1.25 Gbps.
